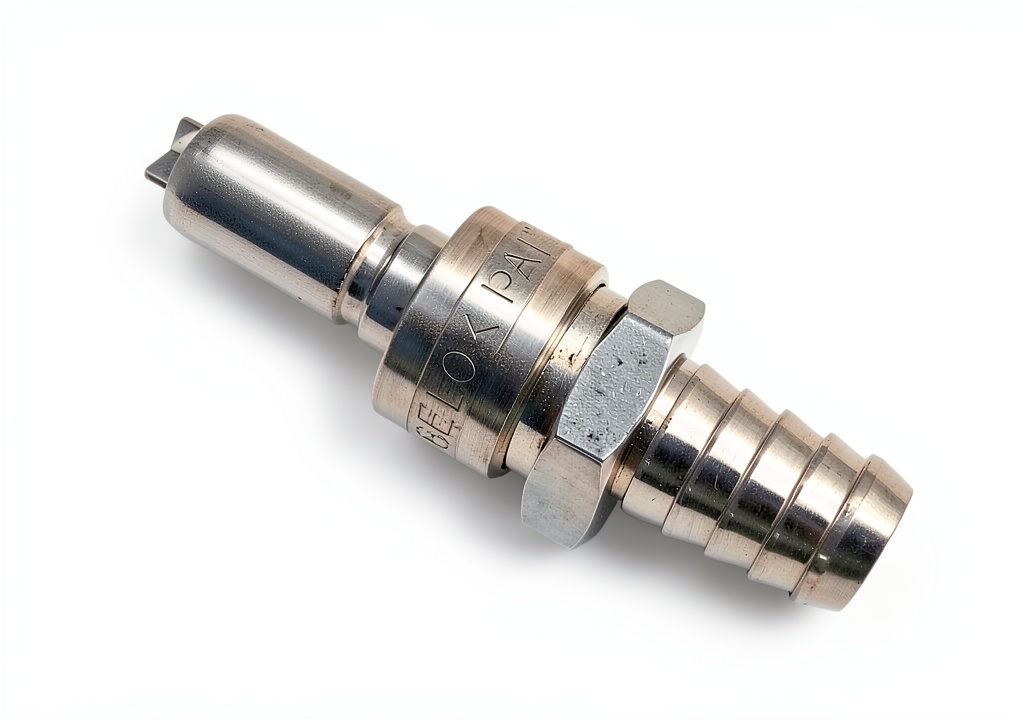

Swagelok QC8 Quick Connect 1/2″ Hose 316 Stainless 750 psi Max

Description

Product Overview

The Swagelok QC8 Quick Connect series is engineered for precision, reliability, and ease of use in demanding industrial settings. This particular model features a 1/2″ hose connector crafted from premium 316 stainless steel, a material renowned for its exceptional corrosion resistance and strength in harsh environments. With a maximum coupled pressure rating of 750 psi and an uncoupled rating of 250 psi, the fitting delivers robust performance for both high‑pressure fluid transfer and gas distribution applications. The design incorporates a seamless stem and a secure locking mechanism that eliminates the risk of accidental disconnection, providing peace of mind for operators who require consistent, leak‑free operation.

Beyond its impressive pressure capabilities, the QC8 fitting benefits from Swagelok’s proprietary manufacturing processes, which include meticulous machining, rigorous testing, and strict quality control standards. Each component is inspected for dimensional accuracy, surface finish, and material integrity, ensuring that the final assembly meets or exceeds industry specifications. The compact form factor allows for easy integration into existing piping systems, while the 316 stainless construction guarantees longevity even when exposed to aggressive chemicals, saline solutions, or high‑temperature environments.

Installation is straightforward thanks to the intuitive quick‑connect design. Users simply insert the hose into the connector, rotate the stem to lock, and achieve a secure seal without the need for additional tools or complex procedures. This simplicity reduces installation time, minimizes labor costs, and lowers the potential for human error during assembly. The QC8 series is compatible with a wide range of hose materials, including PTFE, polyurethane, and reinforced rubber, making it a versatile choice for diverse industrial applications.

In addition to its functional attributes, the QC8 fitting is supported by comprehensive documentation, including detailed installation guides, pressure charts, and maintenance recommendations. Swagelok also offers technical support and training resources to help customers maximize the performance and lifespan of their fluid system components. Whether deployed in a manufacturing plant, a chemical processing facility, or a field service operation, the QC8 Quick Connect fitting delivers the reliability and durability that professionals demand.

Usage

This quick‑connect fitting is ideally suited for a variety of industrial scenarios where rapid hose changes and secure connections are essential. In hydraulic systems, the QC8 provides a dependable link between pumps, actuators, and control valves, allowing for efficient power transmission while maintaining system integrity under high pressure. Its resistance to hydraulic fluid degradation ensures that performance remains consistent over extended service intervals.

In pneumatic applications, the fitting excels at delivering compressed air to tools, instrumentation, and automation equipment. The 750 psi coupled rating accommodates the typical pressure ranges found in pneumatic circuits, while the 250 psi uncoupled rating offers an added safety margin during maintenance or hose replacement. The stainless steel construction resists moisture‑induced corrosion, a common challenge in compressed‑air environments.

For plumbing and fluid handling tasks, the QC8 is an excellent choice for transferring liquids such as water, solvents, and specialty chemicals. Its ability to withstand aggressive media makes it valuable in chemical processing plants, wastewater treatment facilities, and food‑grade applications where hygiene and material compatibility are paramount. The quick‑connect mechanism simplifies routine hose swaps, reducing downtime and enhancing operational efficiency.

Why Choose Us

Swagelok’s reputation for engineering excellence is built on decades of experience delivering high‑quality fluid system components. By selecting the QC8 Quick Connect fitting, customers benefit from a product that embodies the company’s commitment to precision, durability, and performance. Each fitting undergoes exhaustive testing, including pressure cycling, leak detection, and material compatibility assessments, ensuring that it meets the rigorous demands of modern industry.

Our dedication to customer satisfaction extends beyond the point of sale. Swagelok provides comprehensive technical support, offering guidance on system design, installation best practices, and troubleshooting. In addition, we maintain an extensive inventory of spare parts and accessories, enabling rapid replacement and minimizing operational disruptions. Our global network of service centers ensures that expertise is readily available wherever you operate.

Choosing Swagelok means investing in a solution that reduces total cost of ownership. The QC8 fitting’s long service life, resistance to corrosion, and low maintenance requirements translate into fewer replacements, lower inventory costs, and decreased labor expenses. Moreover, the quick‑connect design accelerates installation and maintenance tasks, delivering tangible productivity gains across your organization.

Key Features

• 316 stainless steel construction provides superior corrosion resistance for long‑term reliability.
• Maximum coupled pressure of 750 psi ensures safe operation in high‑pressure fluid and gas systems.
• Quick‑connect design enables fast, tool‑free installation and hose changes, reducing downtime.
• Compatible with a wide range of hose materials, offering flexibility for diverse applications.
• Backed by Swagelok’s expert technical support and comprehensive warranty for peace of mind.

FAQ

What is the difference between coupled and uncoupled pressure ratings?

Coupled pressure refers to the maximum pressure the fitting can safely handle when the hose is securely attached and the locking mechanism is engaged. Uncoupled pressure is the limit when the hose is removed or the connector is not locked, providing a safety margin to prevent accidental release of fluid or gas.

Can the QC8 fitting be used with non‑metallic hoses?

Yes, the QC8 is compatible with a variety of hose types, including PTFE‑lined, polyurethane, and reinforced rubber hoses. The flexible stem and secure locking mechanism accommodate different hose diameters while maintaining a leak‑free seal.

Is the fitting suitable for food‑grade applications?

The 316 stainless steel material meets many food‑grade standards, offering excellent resistance to corrosion and easy cleaning. However, users should verify that the specific hose and fluid combinations comply with applicable food safety regulations.

How does Swagelok ensure the quality of the QC8 fitting?

Each QC8 fitting undergoes a series of rigorous inspections, including dimensional checks, surface finish analysis, and pressure testing. Swagelok’s manufacturing processes adhere to ISO 9001 standards, and the product is backed by a comprehensive warranty and technical support program.

What maintenance is required to keep the fitting performing optimally?

Regular visual inspections for wear, corrosion, or damage are recommended. The fitting should be cleaned with appropriate solvents if exposed to contaminants, and the locking mechanism should be checked for proper operation before each use. Following the manufacturer’s maintenance guidelines will help extend the service life of the fitting.
